Model: DGD
Head: 5-80m
Capacity: 36-5040m3/h
Pump type: Horizontal
Media: Slurry
Material: Cr27, Cr28
Performance range
SHORT INTRODUCTION
Size: 4-16inches
Capacity: 36-5040m3/h
Head: 5-80m
Material: Cr27, Cr28,
Seal：packing seal, expeller seal, mechnical seal.
Design features

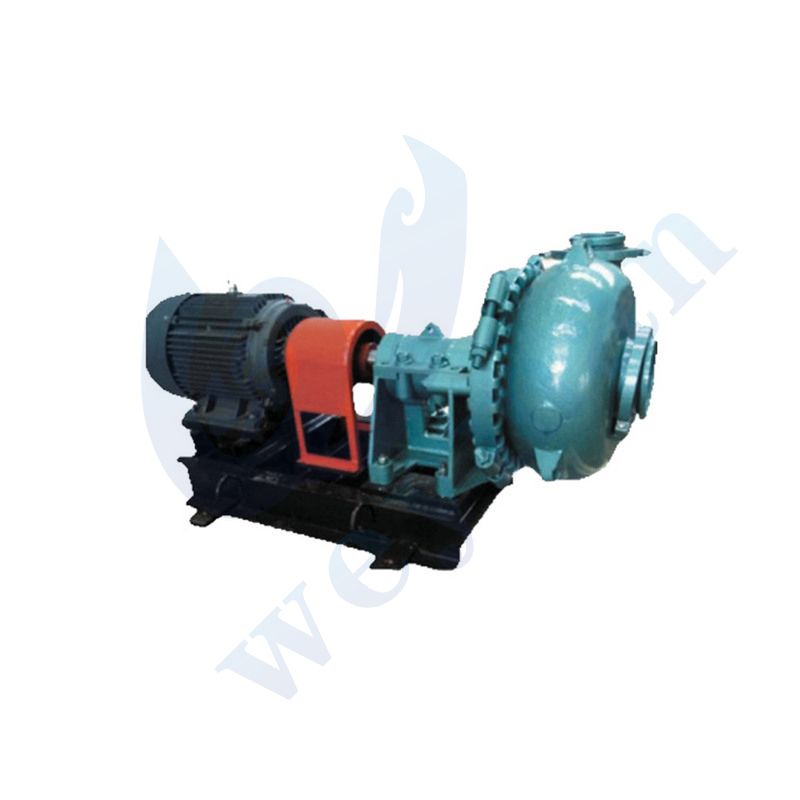

DGD type pump is horizontal single stage end suction with single casing slurry pump,it adopts to dredging project.with wide passage and good suction ability.
The wet parts is high-hardness material,it has interchangeable hard metal or pressure moulded elastomer liners.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Applications
Dredging and relevent projects.
