Model: QCZ73X
Working Pressure: DN50-DN100 16bar
DN125-DN200 10bar
DN250-DN400 7bar
Type: Wafer
Design Standard: MSS SP-81
Flange Standard: DIN PN10, PN16, 150LB, JIS 10K, TABLE E/D
Face to Face: MSS SP-81
Testing Standard: API-598
SHORT INTRODUCTION

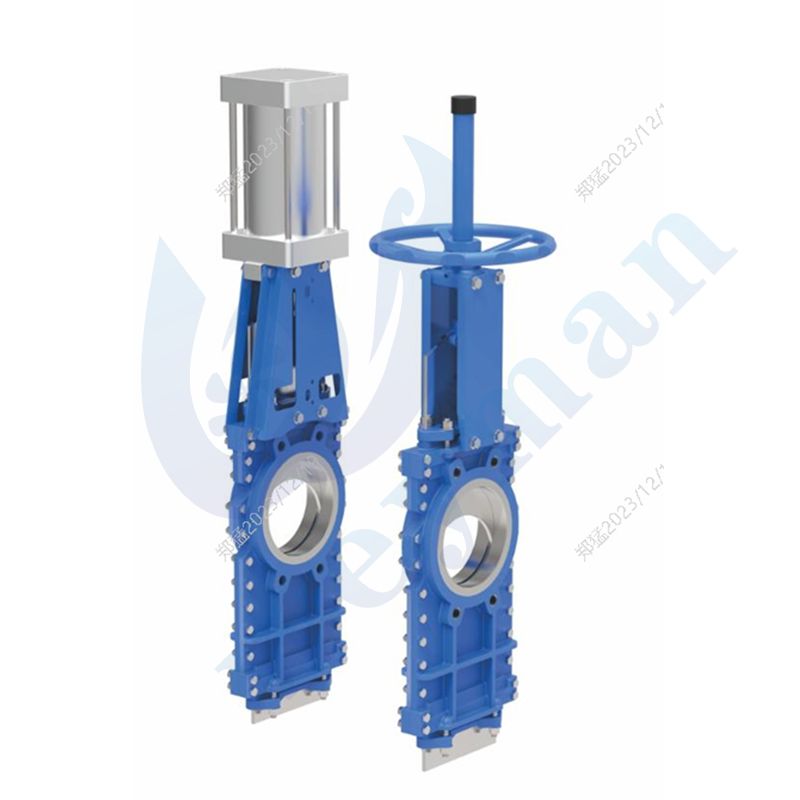

Operation: handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear box, lever
Main material: F55, F53, 2205, CF3M, CF8M, CF8, WCB
Wedge material: F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing material: NBR, EPDM, PTFE; FKM, Graphite, Metal
Packing: Aramid fiber high-water based fiber, rubber, PTFE, graphite
Applicable medium: Applicable for coal in power plant, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
