Nominal pressure: 0.6MPa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 150Lb
Nominal diameter: DN50~1200MM nps 2"~48'
Materials: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8.CF8M, CF3, CF3M.
Seal type: Stainles steel hard seal, Teflon soft seal.
SHORT INTRODUCTION
Model: QDZ43X
Working Pressure: DN150-DN200 10bar
DN250-DN400 0.7Mpa DN250-DN400 7bar
DN450-DN550 0.5Mpa DN450-DN550 Sbar
DN600-DN700 0.3Mpa DN600-DN700 3bar
Type: Flange
Design Standard: MSS SP.81
Flange Standard: PN10/PN16 150LB 10K TE TD
Face to Face: MSS SP-81
Testing Standard: API-598

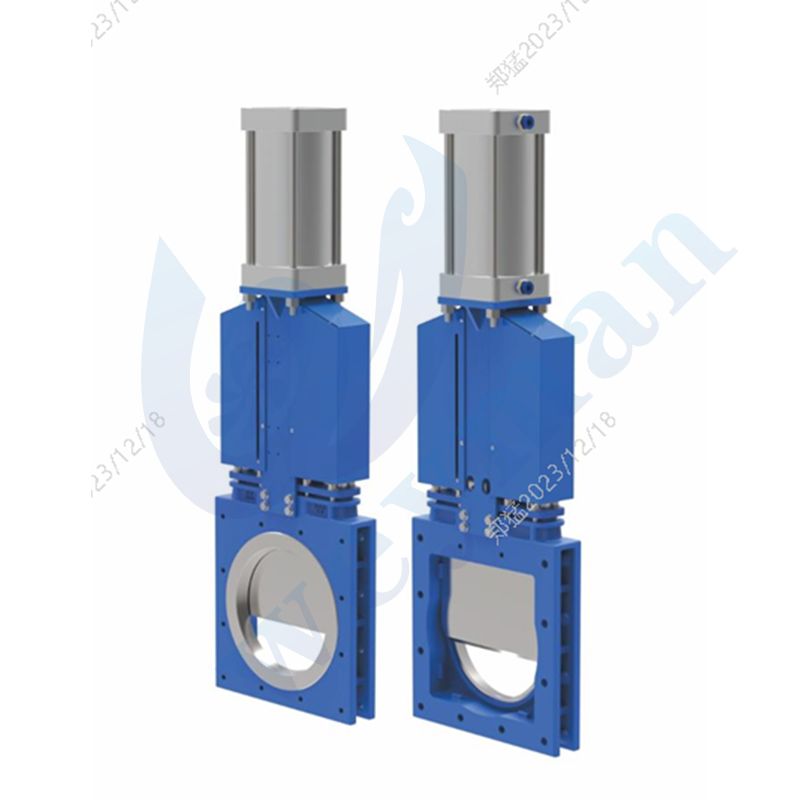

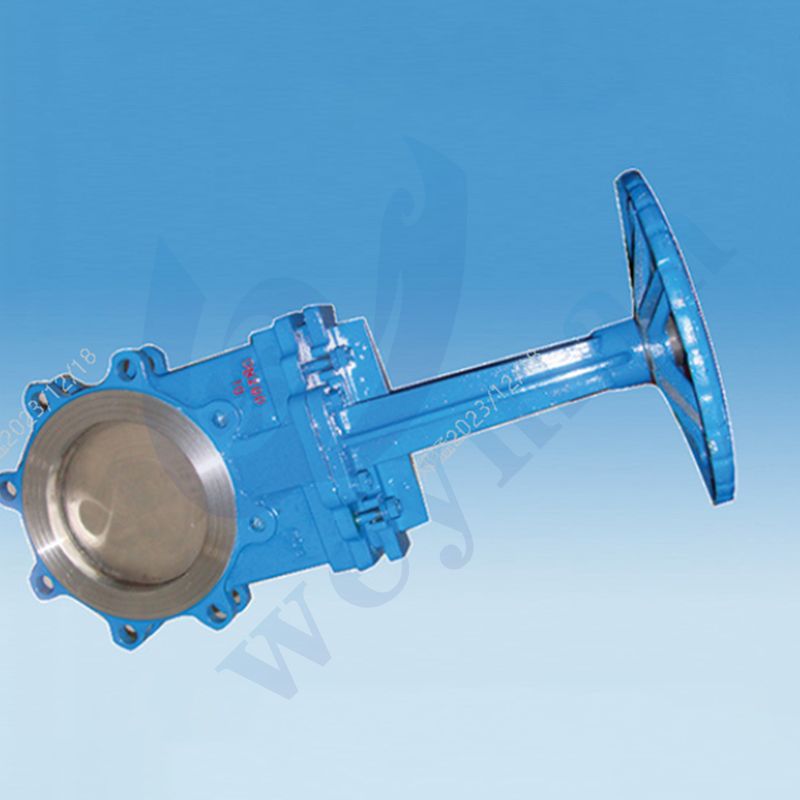

Operation: handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear, lever
Main material: F55, f53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Wedge material: F55, F53, 2205, SS310, SS316L, SS316. SS304
Sealing material: NBR, EPOM, PTFE, FKM, Graphite, Metal
Packing: Aramid fiber, high-water based fiber, rubber, PTFE graphite
Applicable medium: Applicable for Dust, Solid Particles, Coal, oil, chemical and so on. Slag, cinder, dislagging recommend.
